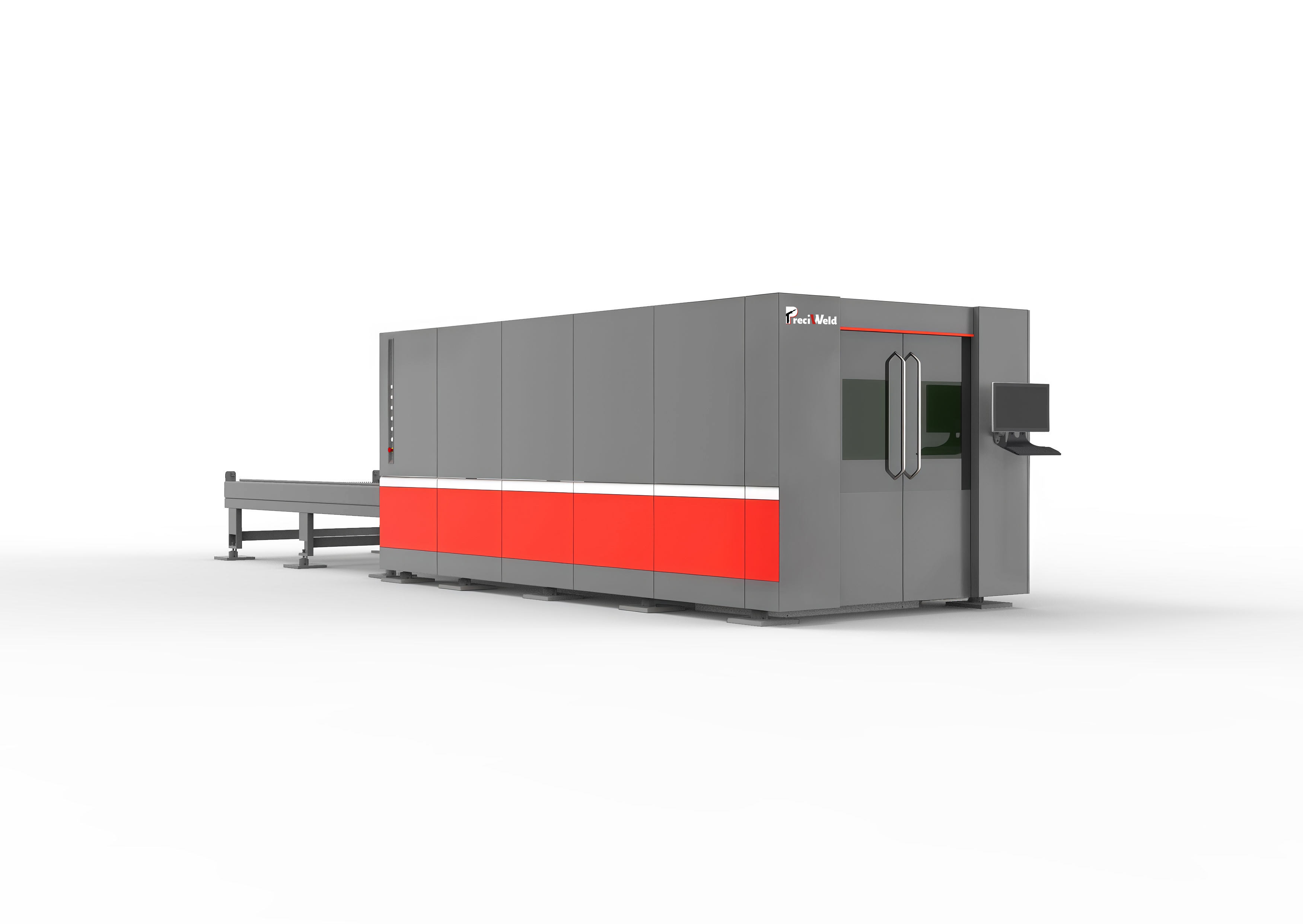

Name: Metal Sheet Fiber Laser Cutting Machine PW8025 Fully Enclosed 20KW
Brand: Tianjin Preciweld Ltd
SKU: PW8025
Availability: InStock
Rating: 5 (1 reviews)

Description

Targeted Precision for Heavy-Duty Metal Fabrication
The Metal Sheet Fiber Laser Cutting Machine PW8025 Fully Enclosed 20KW is engineered for professional metal fabricators requiring high accuracy and production continuity. Featuring a fully enclosed structure and dual interchangeable working tables, this fiber laser cutting machine enables workflow optimization while adhering to industrial safety standards. It meets the demands of engineers and procurement managers seeking robust CNC laser cutting machines that combine operational efficiency with stringent compliance parameters for cutting stainless steel, aluminum, brass, and carbon steel up to 40mm thickness.

Advanced Technical Architecture for Consistent Performance
Equipped with a Raycus CE certified 20KW fiber laser resonator and Raytools cutting head, this machine integrates an advanced CYPCUT control system delivering ±0.05mm XY and ±0.008mm Z axis positioning accuracy. The seamless welded lathe bed and cast aluminum crossbeam maximize structural rigidity, while the water cooling system sustains stable laser emission during prolonged operation cycles. These technical features ensure the fiber laser cutting machine supplier offers customers measurable cutting speed up to 120 meters per minute, rapid acceleration at 1.5G, and reliable load handling up to 4000 kg per table.

Industrial Applications Enhancing Fabrication Efficiency
This laser cutting machine serves extensive applications across metal processing sectors including automotive chassis, lighting equipment components, and elevator decoration panels. Its capacity to handle diverse materials like stainless steel and brass with fine edge quality addresses complex fabrication requirements. By facilitating continuous operation via dual tables, the CNC laser cutting machine enhances throughput and precision in metal sheet production lines. It is especially suitable for manufacturers demanding seamless integration with upstream and downstream automated workflows in industrial settings.

Product Advantages

Structural and System Design Strengths
The PW8025’s fully enclosed structural design reduces operational hazards and environmental contaminants, aligning with rigorous industrial safety standards. The dual interchangeable working tables allow uninterrupted production, improving efficiency for large-volume orders. Constructed with a welded lathe bed and cast aluminum crossbeam, the machine ensures minimal vibration and deformation. Integration of the Raycus laser resonator and CYPCUT system provides system modularity and simplified maintenance paths. As a fiber laser cutting machine supplier, our design allows scalability and adaptation to various industrial automation systems.

Performance and Usability Benefits for Professional Users
Performance-wise, the machine delivers reliable high-speed cutting with excellent positional accuracy, crucial for fabricators targeting precision metal part production. User interface enhancements through the CYPCUT control system enable intuitive operation and rapid response adjustments, thereby reducing downtime. Robust water cooling and safety features provide operational stability and compliance with factory safety protocols. By offering precise cutting capabilities alongside dual-table continuous operation, this fiber laser cutting machine maximizes return on investment through increased throughput and reduced labor costs.

Main Configuration of Fiber Laser Machine Bed

No.	Item	Remark
1	Whole lathe bed	Seamless welding and Whole machine quenching
2	Crossbeam	Cast aluminum beam

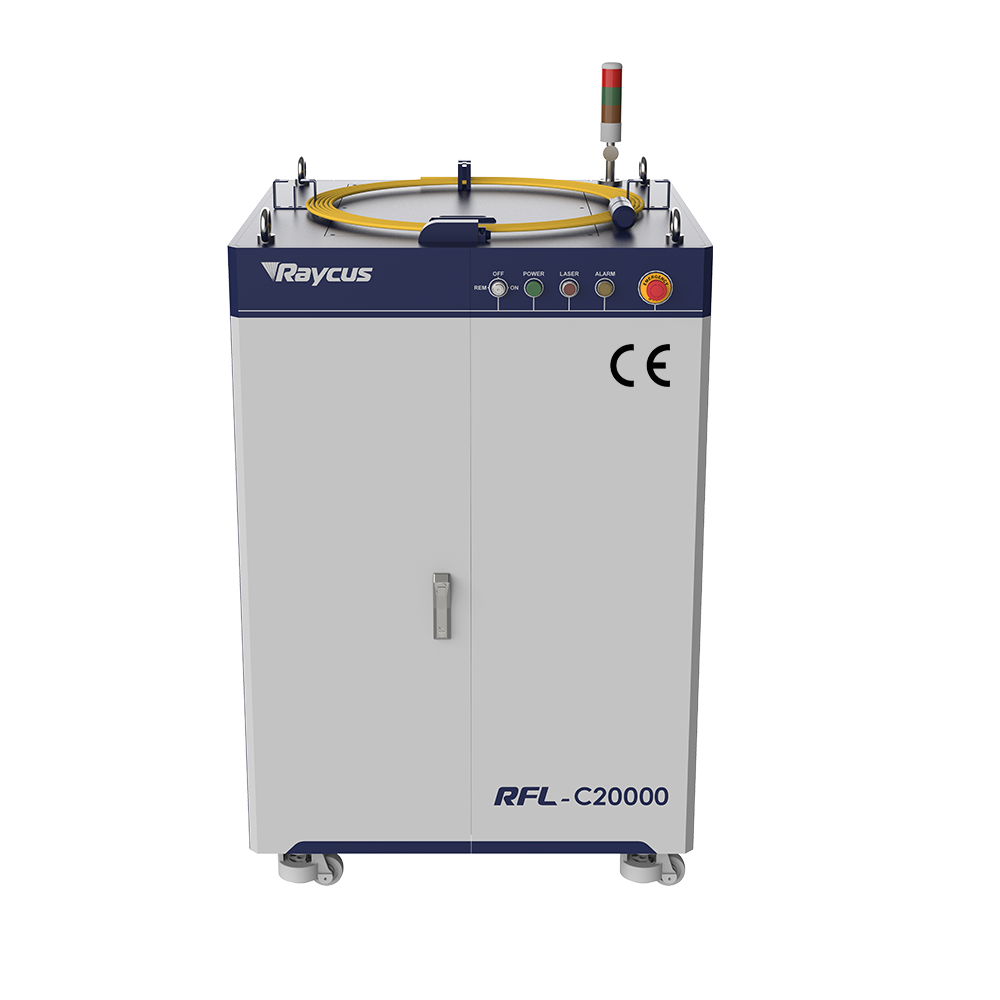

3	Laser Rezonator	China Raycus CE version
4	Laser Cutting Head	Raytools/BOCI/PRECITEC

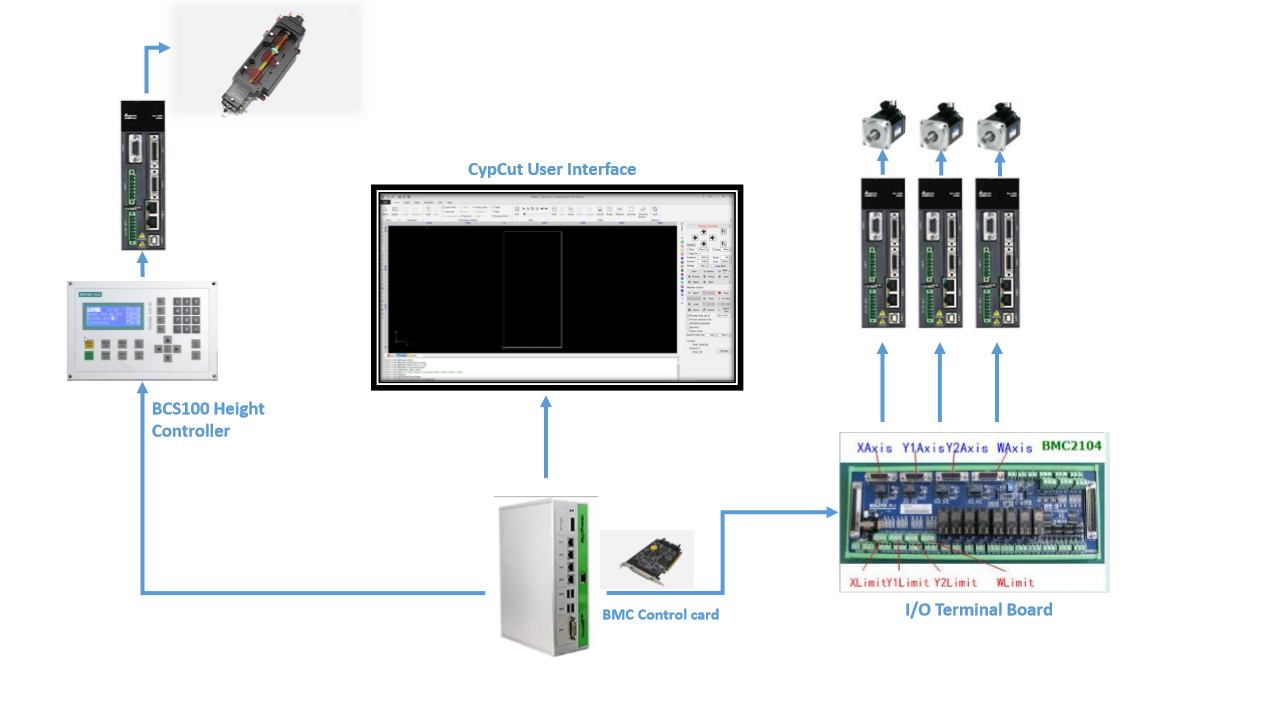

5	Controlling system	CYPCUT
6	Height follow system	CYPCUT BCS100 V3.0
7	Servo Motor	Japan Fuji 2.8KW
8	Reducer	Japan Shimpo
9	Rail	Taiwan HIWIN
10	Rack	Taiwan YYC Helical Rack

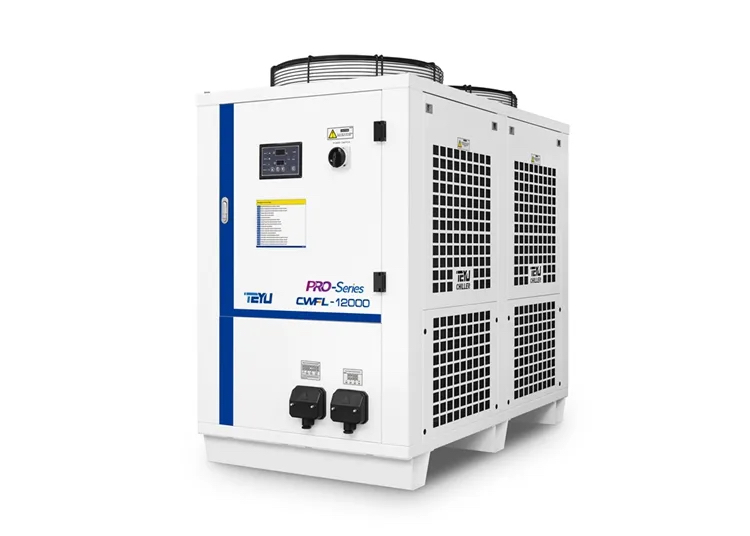

11	Chiller	Hanli/S&A Chiller
12	Electrical components	French Schneider
13	Pneumatic component	SMC / AirTAC
14	Proportional valve	Japan SMC
15	Industrial Computer	Yankong

Technical Parameters:

No.	Item	Parameter	Remark
1	Model	PW8025	Gantry structure
2	Working size	2550*8200mm	Dual working table
3	X travel	2550mm
4	Y travel	8200mm
5	Z travel	200mm
6	X/Y position accuracy	±0.05mm
7	Z position accuracy	±0.008mm
8	X/Y resetting position accuracy	±0.03mm
9	Max no-loading running speed	120m/min
10	X/Y max accelerated speed	1.5G
11	Table Max loading weight	4000KGS
12	Cooling	Water cooling
13	Power demand	380V/50HZ/100A
14	Machine Dimension	2150043502220mm
15	Machine weight	25.5T

Material Cutting Parameters:

20000W Laser Power
Mild Steel(Carbon Steel)	≤40mm	O2
SS 304 Stainless Steel	≤40mm	N2
Aluminum	≤30mm	N2
Brass	≤20mm	N2

Packing List

PW8025 laser machine bed with cover and exchange table		1 SET
Industrial Chiller		1 SET
20KW Laser generator		1 SET
Cypcut controlling system		1 SET
Safety Barrier		1 SET
50KV/A Stabilizer	Optional	1 SET
Four Cartridges Smoke Filter	Optional	1 SET

Free Spare Parts List

Protective Lens	10	FREE
Focus Lens	1	FREE
Ceramic rings	1	FREE
Nozzle	15	FREE

Packing and Delivery: Film or Plywood case package in one 40FR

Application:

Use Scenarios

Application in Automotive and Heavy Equipment Fabrication
In automotive manufacturing plants, the PW8025 fiber laser cutting machine plays a critical role in cutting thick carbon steel plates for chassis and structural components. The fully enclosed design ensures compliance with workplace safety regulations, while high cutting accuracy supports stringent dimensional tolerances required in vehicle assembly. Its dual-table workflow reduces cycle times, facilitating integration into automated production lines where consistency and throughput are paramount. This performance meets industry expectations for durability, precision, and reduced material waste, reinforcing its value as a premium fiber laser cutting machine supplier product.

Role in Architectural Metal and Decorative Panel Production
Within the architectural metal fabrication sector, this CNC laser cutting machine excels in processing stainless steel and brass sheets used for decorative elevator panels and lighting fixtures. The equipment provides smooth-edge finishes and tight tolerances essential for aesthetic quality. The water-cooled 20KW laser source maintains consistent thermal performance, minimizing heat-affected zones and distortion. By supporting automated workflow integration through its control system and dual interchangeable tables, the machine enhances manufacturing efficiency and repeatability in high-volume batch production environments, addressing exacting client specifications in building and interior design markets.

FAQ

What metal thicknesses can the PW8025 fiber laser cutting machine handle?
The PW8025 supports cutting mild steel and stainless steel sheets up to 40mm, aluminum up to 30mm, and brass up to 20mm, depending on the assist gas. This range makes it suitable for diverse industrial metal sheet processing using a fiber laser cutting machine.

Is the PW8025 customizable for different laser power requirements?
Yes, the machine can be customized with laser power options ranging from 3KW to 20KW. This flexibility allows buyers to select power levels based on their specific cutting needs, ensuring optimal performance from this laser cutting machine.

What installation and operational support does PRECIWELD provide for the PW8025?
PRECIWELD offers comprehensive after-sales services including installation guidance, training on the CYPCUT control system, and maintenance support to ensure stable operation and longevity of the fiber laser cutting machine supplier products.

How does PRECIWELD ensure reliable logistics for large CNC equipment?
The PW8025’s robust build (25.5 tons) requires professional handling. PRECIWELD coordinates logistics with secure packaging and transport methods to deliver this CNC laser cutting machine safely to over 100 countries, maintaining product integrity upon arrival.
